    • Pulse Fabric Drum Dust Filter
      Writer: Pulse Fabric Drum Dust Filter From: Pulse Fabric Drum Dust Filter
      Size: Big Medium Small Time: 2014-07-21 17:34:19

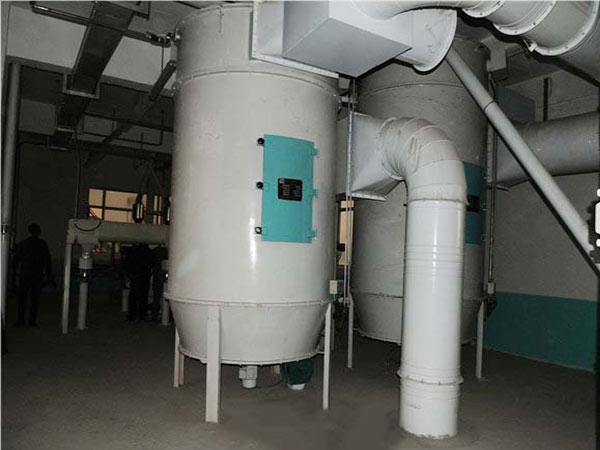

      jet pulse deduster 2.jpg

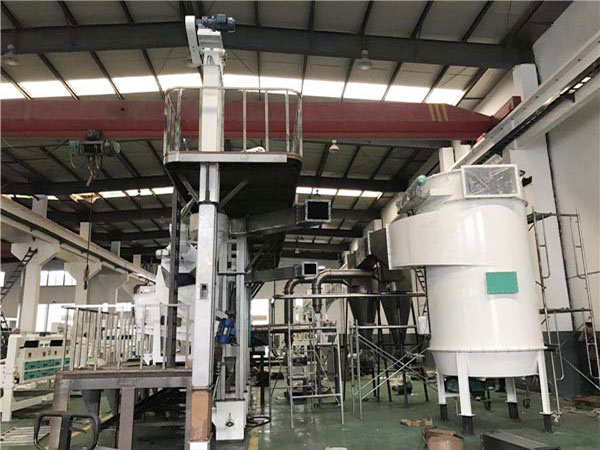

      jet pulse deduster 1.jpg

      The jet pulse filter ranks within top 2 due to its good quality and sells best. The low pressure pulse cloth dust filter is the new product after years’ development and improvement. It has got an ideal effect after the clients use it.
      The deduster can be widely used in separation of air and dust below 80℃, which is suitable for food and grain industries due to the oil and water free pulse air source.


      Structure:
      Strong cylindrical body; the air goes into the machine in a tangential centrifugal direction, reducing the dust as well as purifying the air;
      Air source: Single dust filter can be equipped with sliding slab or low pressure air pump; Multiple jet pulse filters can be equipped with low pressure air pump or Roots Blower.
      The low pressure jet technology 0.05Mpa( 0.5kg/cm2) of jet pulse filter  extends durability of pulse valve.
      The jet pulse filter is in small dimension, low noise, compact structure, the noise of low pressure air pump is 78dB, lower than that of air compressor. The air pump is equipped with low power motor.
      The machine is equipped with dust catching system.
      The electronic signal directly starts low voltage pulse solenoid valve.
      The DMK-I pulse controller replaces hardware with software, the advanced microcomputer chip; the jet pulse filter has WATCHDOG system with fault tolerant, anti-interference, and function design; simple and intelligent peripheral circuit realizes digital pulse width input, monitoring of output, more stable and functional.



      Technical parameter of high voltage pulse cloth dust collector:



      Model
      Filter Bag Number


      Filter Bag Size
      (MM)
      Filtering Area
      (M2)
      Blast Capacity for Filtering
      (M3/H)
      BLM-FⅡ78
      78
      Φ120X2000
      54.3
      9770-13000
      BLM-FⅡ108
      108
      Φ120X2000
      81.4
      14650-19530
      BLM-FⅡ130
      130
      Φ120X2000
      90.5
      16290-21700







       ~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
