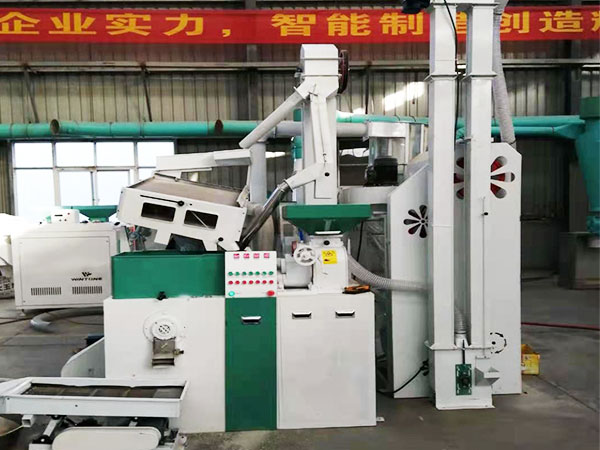

Our small scale fully automatic rice mill plant covers the full range of rice and paddy handling – from pre-cleaning, stone removing, hulling, separating, polishing, whitening, optical sorting to bagging. This small scale rice processing plant is used for you to start a small business.
1) TDTG/15 Single Elevating Conveyor; 2) Multifunctional Destoner; 3) New-Type Split Paddy Husker ; 4) TDTG/25 Double Elevating Conveyor ; 5) MGCZ Paddy Separator ; 6) Megative Pressure Emery Rice Whitener; 7) Broken Rice Screen ; 8) Main Motor ;9) Central Controller
Unique rice milling technique
Each grain of rice can be evenly unshelled, whitened and polished while keeping close contact with the emery roller, producting very few broken rice grains and making higher rice milling rate.
Reliable strucure and multifunctions
This rice mill in integrated with cleaning, hulling, polishing, and polishing part. Reliable structure, well-proportioned, simple but sophisticated
High performance
Low power, low energy consumption, high output, easy operation,low noise and smooth operation.
Fullly automatic system
The whole rice milling plant adopts the touch screen system. Our integrated digital services help improve efficiency and quality.
|
SPECIFICATIONS |
|||||
|
Model |
Capacity
(kg/h) |
Rice milling rate(%) |
Net Weight(kg) |
Power(kw) |
Dimension
(L-W*H)mm |
|
MLNS15/15 |
500-700 |
68-75 |
1650 |
26.5 |
3500*2000*3000 |
|
MLNS20/15 |
800-1100 |
68-75 |
1750 |
38 |
3500*2000*3000 |
Power and Output
|
Matched Machine |
Power (Kw) |
Rotate Speed of Motor |
Remark |
|
Single Elevating Conveyor |
0.75 |
910 |
|
|
Destoner |
0.75 |
910 |
|
|
Destoner Fan |
1.5 |
2160 |
|
|
Paddy Husker |
5.5 |
1460 |
Husker fan shares the same Motor with Husker |
|
Paddy Husker Fan |
|||
|
Double Elevating Conveyor |
0.75 |
910 |
|
|
Gravity Paddy Separator |
0.75 |
910 |
5 layers for MLNS 15/15；
|
|
Negative Pressure Emery Rice Mill/whitener |
11 |
1460 |
Emery Rice Mill Fan shares the same Motor with Emery Rice Mill |
|
Emery Rice Mill Fan |
|||
|
Broken Rice Screen |
0.37 |
1400 |
|
|
Multifunctional Pulverizer ((Selected) |
11 |
1460 |
Pulverizer shares |
